Machine Room Elevator

An elevator machine room houses the mechanical and electrical components necessary for smooth, secure operation. Access is restricted to authorized personnel due to the sensitive equipment inside.

Key Components

Elevator Controller — the brain of the system; monitors calls, directs the car, and ensures safe operation.
Elevator Motor — the drive unit responsible for lifting and lowering the cabin.
Disconnect Switches — one for the unit's power supply, one for emergency lights.
Emergency Brakes & Limit Switches — critical components that enhance passenger safety.

Machine Room Types

Traction Elevator Machine Room — found in traditional systems; contains the controller, motor, and auxiliary components; requires a dedicated room.
Hydraulic Elevator Machine Room — common in low-rise buildings; houses the hydraulic pump unit and controller, located near the hoistway.

Machine-Room-Less (MRL) Elevators

In modern architecture, where space optimization matters, MRLs eliminate the need for a separate machine room — accommodating machinery above the shaft or in adjacent spaces.

Space Efficiency

No dedicated machine room required — ideal for tight urban sites.

Integrated Drive System

Compact design maximizes usable floor space and results in energy savings.

Diagrams: Machine Room & MRL Plans

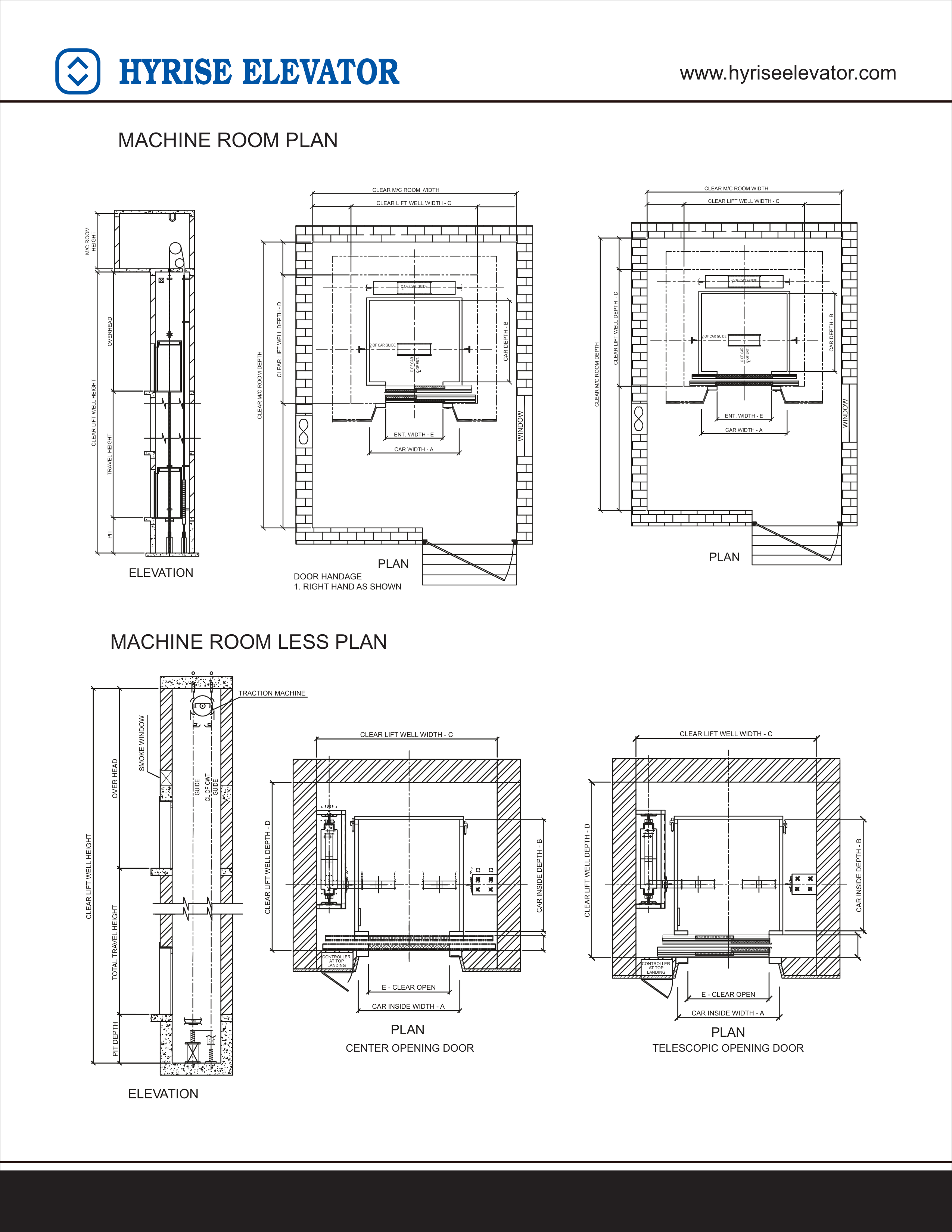

Elevation and plan views for both configurations, plus center-opening and telescopic-opening door layouts.

Machine room and machine-room-less plan diagrams

Motors, Drives & Controllers

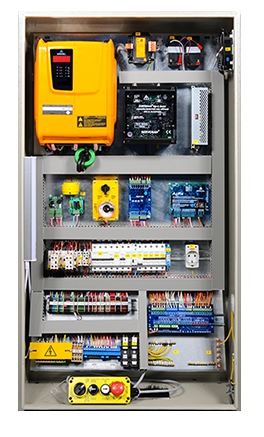

Hyrise pairs geared and gearless traction motors with open-loop and closed-loop controllers, selected to match each building's travel and traffic requirements.

Standard Sizes

Standard car height: 2200mm. All dimensions are clear finished lift wells after plastering. ACO = Automatic Centre Opening, ATO = Automatic Telescopic Opening.

Rated Load	Car Size A×B (mm)	Min. Hoistway C×D (mm)	Max. Hoistway C×D (mm)	Door Size E×H (mm)	Door Type
544 Kgs (8P)	1050×1300	1750×1600	2000×1950	800×2000	ACO
544 Kgs (8P)	1300×1100	1900×1400	2250×1750	800×2000	ACO
544 Kgs (8P)	1000×1350	1600×1600	1950×1950	700×2000	ACO
544 Kgs (8P)	1000×1350	1600×1600	1950×1950	700/800×2000	ATO
544 Kgs (8P)	950×1400	1550×1700	1900×2050	800×2000	ATO
680 Kgs (10P)	1350×1300	2000×1800	2300×1900	800×2000	ATO
680 Kgs (10P)	1350×1300	2000×1700	2300×1900	800×2000	ACO
680 Kgs (10P)	1200×1400	1900×1800	2150×2000	800×2000	ACO
680 Kgs (10P)	1150×1450	1800×1700	2100×2050	800×2000	ACO
680 Kgs (10P)	1150×1450	1800×1800	2100×2150	800×2000	ATO
884 Kgs (13P)	1200×1800	1950×2100	2150×2400	900×2000	ACO
884 Kgs (13P)	1050×2100	1750×2350	2000×2700	800×2000	ACO
884 Kgs (13P)	1050×2000	1950×2250	2000×2600	900×2000	ACO
884 Kgs (13P)	1450×1450	2100×1750	2400×2100	900×2000	ACO
884 Kgs (13P)	2000×1100	2650×1600	2950×1700	900×2000	ACO
884 Kgs (13P)	1050×2000	1700×2350	2000×2600	900×2000	ATO
884 Kgs (13P)	1050×2100	1700×2450	2000×2800	900×2000	ATO
1020 Kgs (15P)	1400×1750	2150×2050	2300×2350	1000×2000	ACO
1020 Kgs (15P)	1450×1650	2100×1950	2400×2250	900×2000	ACO
1020 Kgs (15P)	1500×1600	2150×1900	2450×2200	900×2000	ACO
1020 Kgs (15P)	1000×2400	1650×2700	1950×3050	900×2000	ATO
1020 Kgs (15P)	1200×2000	1950×2250	2100×2600	900×2000	ACO
1020 Kgs (15P)	1200×2000	1850×2300	2150×2650	1000×2000	ATO
1088 Kgs (16P)	1400×1800	2150×2100	2300×2400	1000×2000	ACO
1088 Kgs (16P)	2000×1300	2650×1700	2950×1900	1000×2000	ACO
1088 Kgs (16P)	1600×1600	2250×1900	2550×2100	1000×2000	ACO
1088 Kgs (16P)	1500×1700	2200×2000	2450×2350	1000×2000	ACO
1088 Kgs (16P)	1200×2100	1950×2350	2150×2700	900×2000	ACO
1088 Kgs (16P)	1200×2100	1850×2400	2150×2750	1000×2000	ATO
1360 Kgs (20P)	1600×1900	2500×2250	2650×2550	1000×2000	ACO
1360 Kgs (20P)	1700×1800	2600×2200	2750×2500	1000×2000	ATO
1360 Kgs (20P)	1250×2500	2100×2900	2300×3200	1000×2000	ATO

Rated speed: 1.0 / 1.5 mps across all classes above · Pit depth: 1600mm (1.0 mps) / 2150mm (1.5 mps) · Overhead: 4800mm (up to 1.5 mps)

Installation Notes

Requirements beyond the listed shaft/car sizes — please contact us directly.
Listed shaft sizes assume a landing sill mechanism on the floor — contact us for clarification.
All dimensions are clear finished lift wells after plastering.
Hoistway front wall: 230mm brick preferred.
Door lintel height (minimum) = clear entrance height + 250mm.
RCC machine room slab: 150mm thick, designed to sustain minimum 1000 kg/m² UDL.
Front wall at ground floor level should be built only after cabin assembly.
